Descriere

Un instrument accesibil ce nu ar trebui sa lipseasca de pe masa oricarui electronist si nu numai!

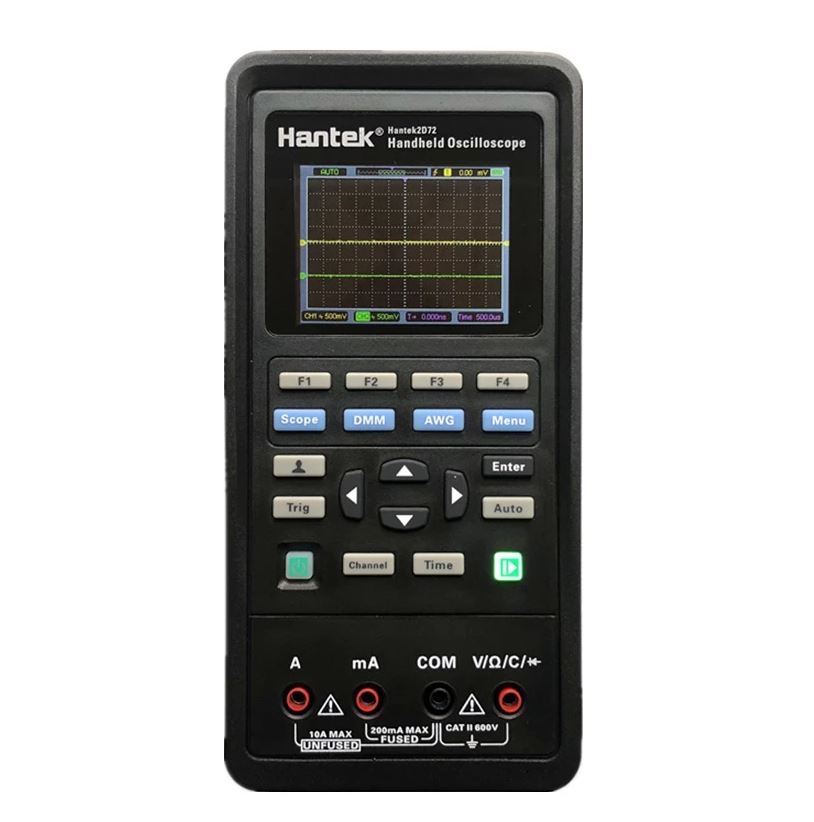

Hantek2D72 3-in-1 70 MHz Oscilloscope, Waveform Generator & Digital Multimeter

Features:

2 Channel Oscilloscope + Digital multimeter + arbitrary waveform generator

Oscilloscope: 70MHz Bandwidth with 2 Channels

Digital Multimeter: AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function

Arbitrary Waveform Generator: 0~10MHz Output, Sine, Square, Ramp, Pulse, Noise, etc

320*240 TFT Display, 5200mAh Lithium Battery,Over 24 Hours Cruising Ability

Auto-scale function

The HANTEK2D72 is an all-new 70 MHz handheld oscilloscope from Hantek featuring a compact and lightweight design with a new generation of 3-in-1 multifunction tester that offers an oscilloscope, signal source and multimeter. It has a small form factor that is easy to hold in one hand and it has a stand that was designed to support multi-angle viewing adjustment. Ultra-low-power design with a Type C charging interface affords a full day or standbytwo months 2 hours battery charge allow working one full day of us or a standby time of two months. It also has a High-definition color LCD screen with a nice clear display with a simple easy to operate Minimalist keyboard design.

Great Functions with a small size!

Color LCD Screen

Legible even in bright sunlight

Soft colors for a clear waveform display

High quality case with silicon protective cover for impact and heat resistance

Powered by two 18650 lithium batteries for a full day of run time or 8+ weeks stand by.

Easy to use Minimalist keyboard design to simplify operation.

3-IN-1

Dual Channel Oscilloscope + Waveform Generator = Multimeter

OSCILLOSCOPE

250M Sampling Rate

70 MHz Bandwidth

10mV~10V Vertical resolution

Auto automatic measuring function

Key tone settings

Adjustable backlight brightness, backlight duration & auto power off time

Digital voltmeter function

Cursor measurement

reference waveform

waveform Storage function

WAVEFORM GENERATOR

250MSa/s Sampling rate

12 bits vertical resolution

Sine: 1Hz~25MHz

Square: 1Hz~10MHz

Triangular: 1Hz~1MHz

Trapezoid: 1MHz~5MHz

Frequency resolution: 1Hz

Output impedance: 50Ω
